Key Features – HyperSheet® Soundproof Rubber Sheet
- High-Density Sound Barrier
Engineered with high-mass polymer density to effectively block sound transmission across all frequency ranges. - Ultra-Slim & Space Saving
Only a few millimeters thick, yet delivers real acoustic performance—maximizing usable wall space and NLA (Net Leasable Area). - Vibration & Resonance Control
Reduces both airborne and impact noise while dissipating vibration in walls, ducts, and structural components. - Fire Retardant (Premium Grade)
Tested to UL 94 V-0, helping slow flame spread and enhance building safety. - RoHS-2 Certified & Low VOCs (Premium Grade)
Free from lead, heavy metals, and toxic substances. Low odor and safe for occupants. - Superior Durability (10–15 ปี)
Resistant to heat, cold, and moisture. Non-fragile, non-powdering, and built for long-term performance. - 100% Fiber-Free & Chemical Resistant
No fiberglass irritation. Resistant to chemicals, UV, and ozone—ideal for demanding industrial environments. - Easy Installation | Industrial Grade
Highly flexible and easy to cut and install. Compatible with wood, steel, and concrete structures. Suitable for HVAC, marine, and international-grade projects.
Product Overview

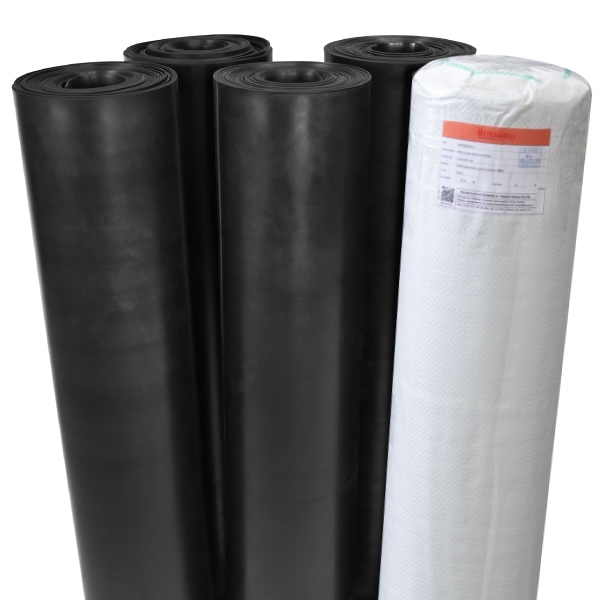

HyperSheet® High-Mass Acoustic Barrier
HyperSheet® is an engineering-grade high-mass acoustic rubber barrier specifically developed to solve structural noise problems at the source.

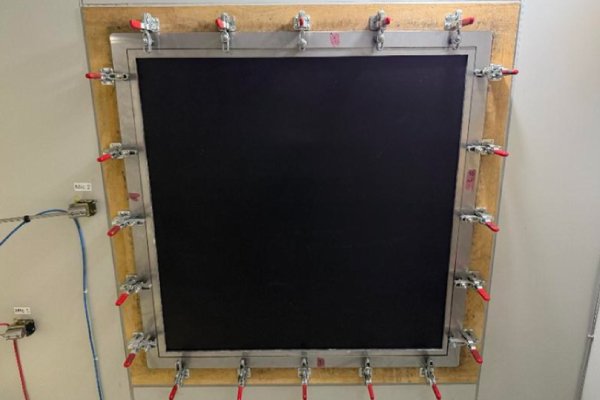

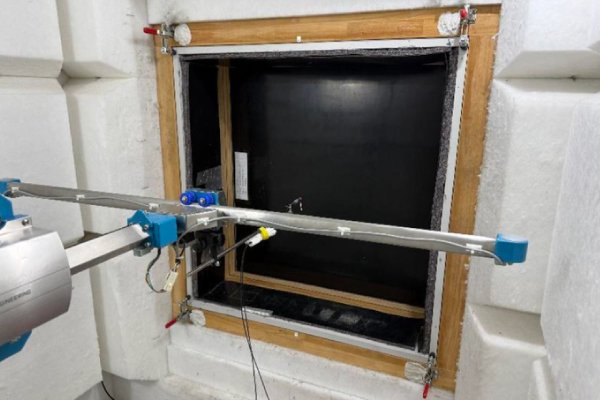

Formulated with an ultra-high-density polymer compound, HyperSheet® reflects and absorbs sound energy efficiently. It has been laboratory-tested in specialized acoustic labs to ensure measurable and reliable performance.
As a result, HyperSheet® has become a preferred sound barrier solution for:
- Industrial factories
- Hotels
- Condominiums
- Residential projects
With a density of 2,000–2,500 kg/m³, HyperSheet® significantly increases Transmission Loss (TL), even at minimal thickness. This allows effective noise reduction without requiring excessively thick wall systems—optimizing project space efficiency.
Product Variants
Economy Grade – Reliable Performance
A popular entry-level acoustic barrier delivering:
Sound Reduction > 32 dB (depending on thickness)
- Available thicknesses: 1.5 mm | 2 mm | 3 mm | 4 mm | 5 mm
- Standard width: 1 meter
- Roll length: 10 meters
- Custom width available up to 1.5 meters
Performance increases proportionally with thickness.
Premium Grade – Advanced Acoustic & Safety Performance
HyperSheet® Premium offers enhanced sound reduction:
Sound Reduction > 39 dB (depending on thickness)
- Available thicknesses: 1.2 mm | 2 mm | 3 mm | 4 mm | 5 mm
- Standard width: 1 meter
- Roll length: 10 meters
- Custom width available up to 1.5 meters
Additional Certifications & Safety Features:
- UL 94 V-0 Fire Retardant
- RoHS-2 Certified
- Low VOCs
- Non-toxic, lead-free, heavy metal-free
- Low odor for indoor safety
Recommended Applications
Industrial Facilities
- Machinery enclosures
- Production line partitions
- Electrical control rooms
Hotels & Residential Projects
- Inter-room wall installation for privacy
- Floor-to-floor sound insulation
HVAC Engineering Systems
- Air duct wrapping
- Drain pipe noise reduction
- Vibration control in mechanical systems
Specialized Facilities
- Recording studios
- Executive meeting rooms
- Entertainment venues
HyperSheet® delivers more than just silence — it delivers performance, safety, and long-term value, tested to international standards to ensure your project achieves optimal acoustic results.
TECHNICAL DATA
| PROPERTIES | VALUES |
| Compound | High Mass Rubber |
| Density | 2,000-2,500 kg/m³ |

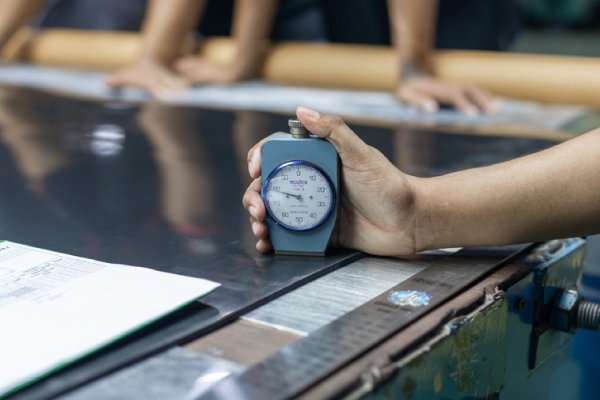

| Hardness | 80 (+/-5) Shore A |
| Tensile Strength | > 3 MPa. |
| Elongation @ Break | > 100% |
| Fire Performance | UL94 V-0 ( Premium Only) |
| Mean Sound Reduction Index | Economy Grade > 32 dB / Premium Grade > 39 dB |
| Operating Temperature | -20°C to +80°C |
| Health Aspects | 100% Fiber-Free , RoHS-2 Certified & Low VOCs (Premium Grade) |
Logistics & Project Support

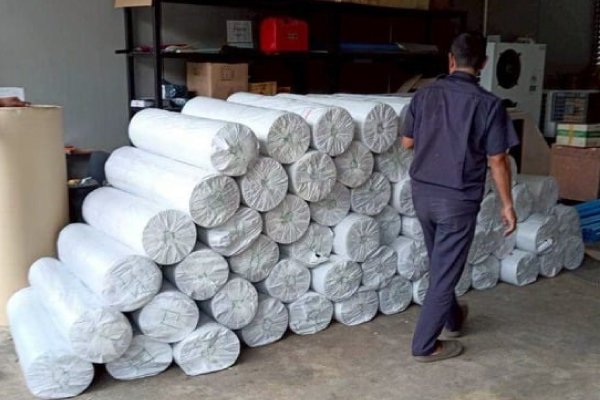

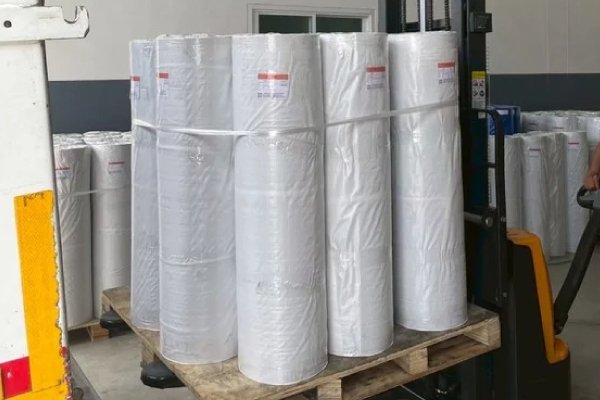

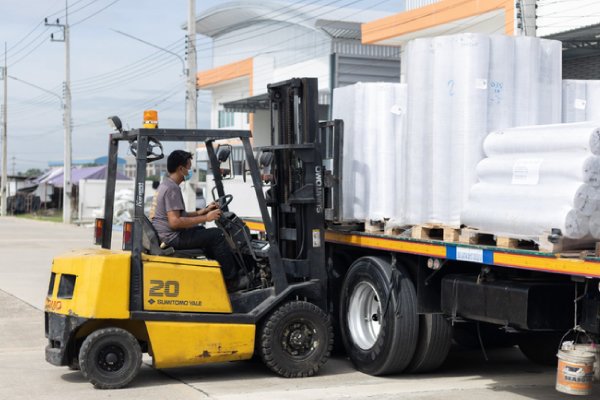

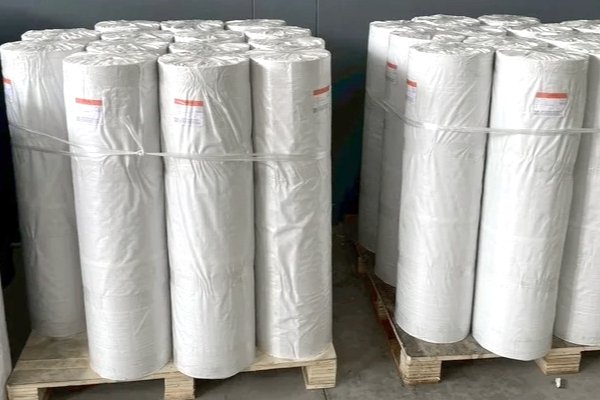

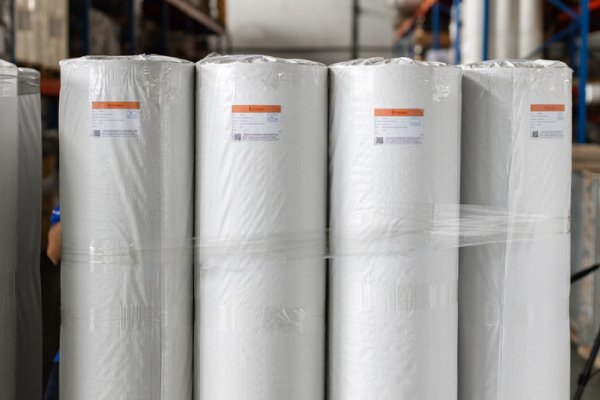

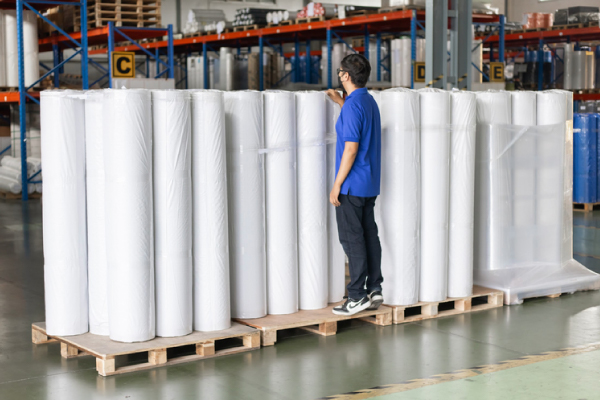

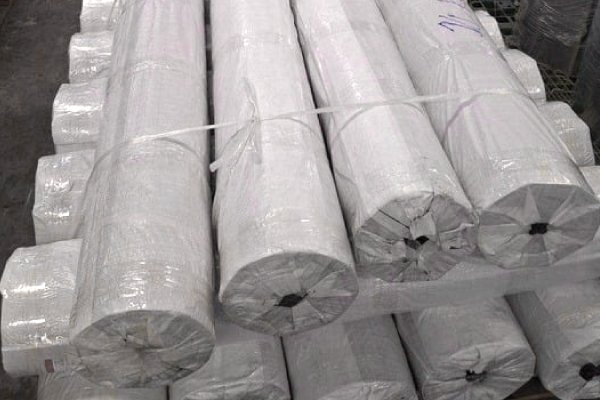

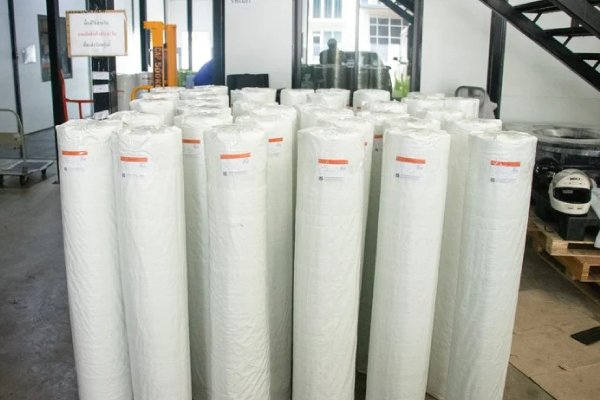

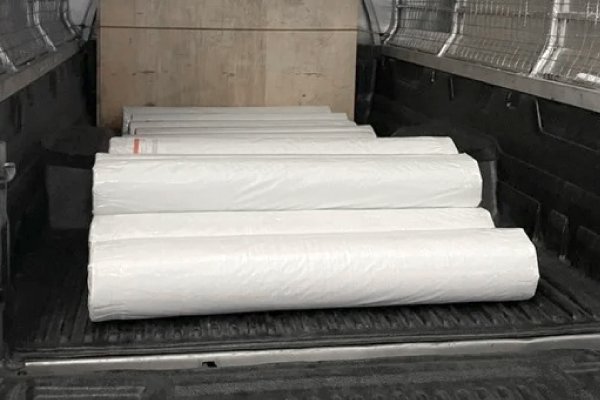

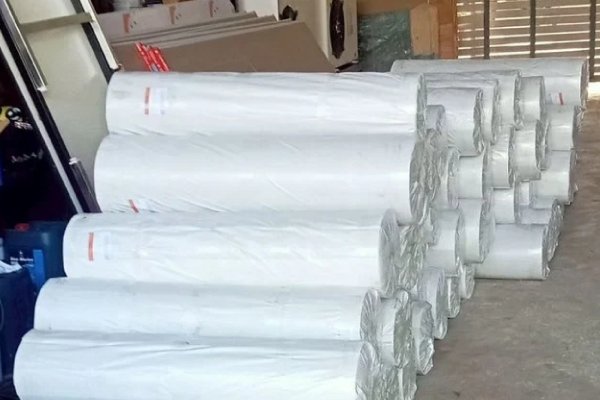

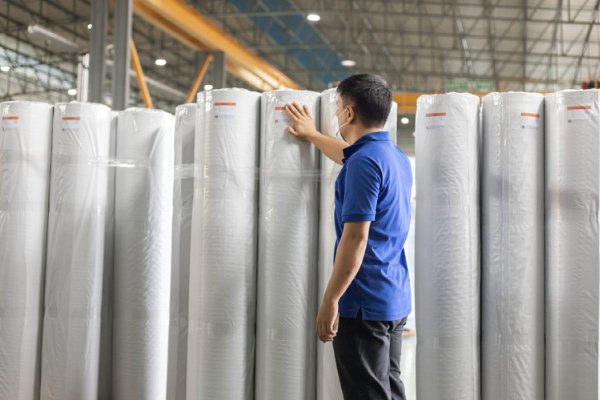

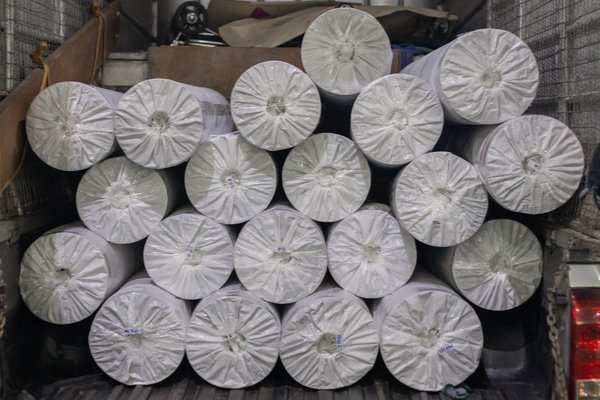

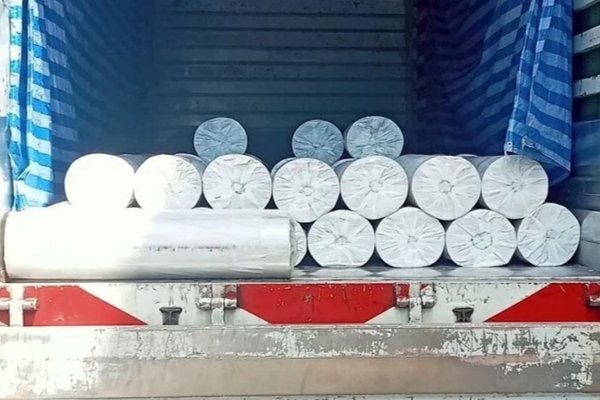

We maintain ready stock for fast delivery nationwide, directly to project sites.
Special Project Rate available for orders of 100 rolls or more.
Contact Us
Our engineering team is ready to assist with specification selection and installation consultation.
- LINE: @ptirubber
- Email: info@ptigroups.com
- HyperSheet® by Polytech Industry Company Limited
Frequently Asked Questions (FAQ) – HyperSheet® Soundproof Rubber Sheet
1. What is HyperSheet® soundproof rubber sheet?HyperSheet® is a High-Mass Acoustic Barrier made from high-density rubber (2,000–2,500 kg/m³). It is engineered to increase Transmission Loss (TL) and effectively reduce sound transmission through walls, machinery enclosures, and ducting systems.
2. How many decibels (dB) can HyperSheet® soundproof rubber sheet reduce?
- Economy Grade: Average sound reduction > 32 dB
- Premium Grade: Average sound reduction > 39 dB
3. How is a sound barrier different from acoustic foam?
A soundproof rubber sheet like HyperSheet® is a Sound Barrier, designed to block sound transmission using high mass density. Acoustic foam, on the other hand, is designed to absorb reflected sound within a room. For optimal results, both materials can be combined in a complete acoustic wall system.
4. What applications is HyperSheet® soundproof rubber sheet suitable for?
- Industrial factories: Machinery enclosures and control rooms
- Hotels, condominiums, offices: Wall and floor sound insulation
- HVAC systems: Duct wrapping and drainage pipe noise control
- Special facilities: Meeting rooms, recording studios, and entertainment venues
5. How does the Premium Grade differ from the Economy Grade?
The Premium Grade is developed for projects requiring higher safety and environmental standards, featuring:
- UL 94 V-0 fire retardant certification
- RoHS-2 compliance
- Low VOCs (low odor emission)
- Free from toxic substances, lead, and heavy metals
- It is ideal for hotels, condominiums, office buildings, and international-standard projects.
The Economy Grade focuses primarily on sound insulation performance and is suitable for general industrial applications or budget-controlled projects.
6. What thickness should I choose?
HyperSheet® is available in thicknesses from 1.2–5 mm, offering varying levels of sound reduction.
In general:
Thicker material = Higher sound reduction performance.
We recommend evaluating on-site noise levels and consulting with our engineering team for proper system design.
7. What is the service life of HyperSheet® soundproof rubber sheet?
HyperSheet® soundproof rubber sheet has an average service life of 10–15 years. It is resistant to heat, moisture, and aging, and does not become brittle or powdery—making it suitable for long-term industrial applications.
