Electrically Conductive Rubber Sheet
Brand : ElectroMer®

Key Features
  Manufactured from high-quality CR (Chloroprene / Neoprene) rubber
  Excellent electrical conductivity
  Effective protection against electrostatic discharge (ESD)

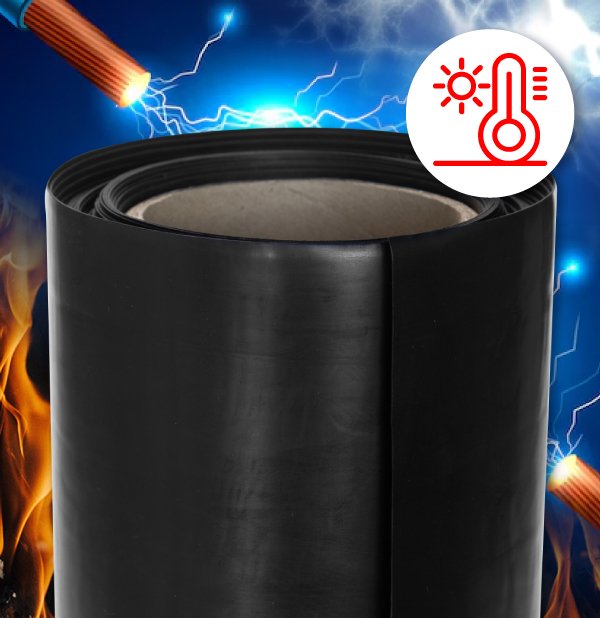

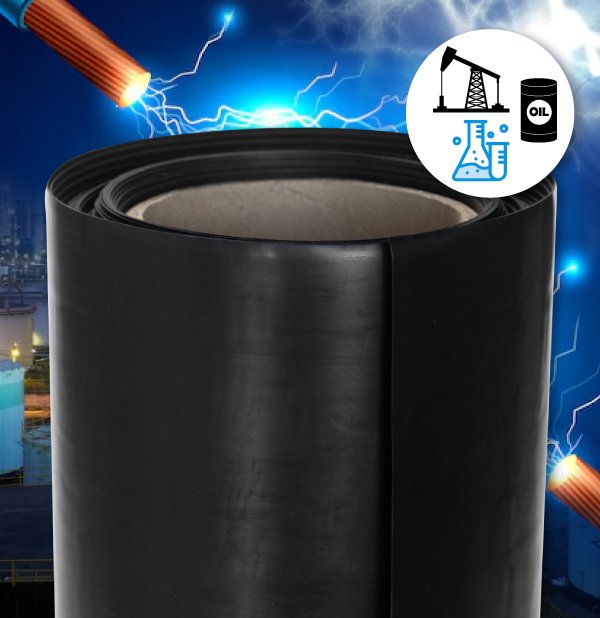

  Resistant to heat, oils, and a wide range of chemicals

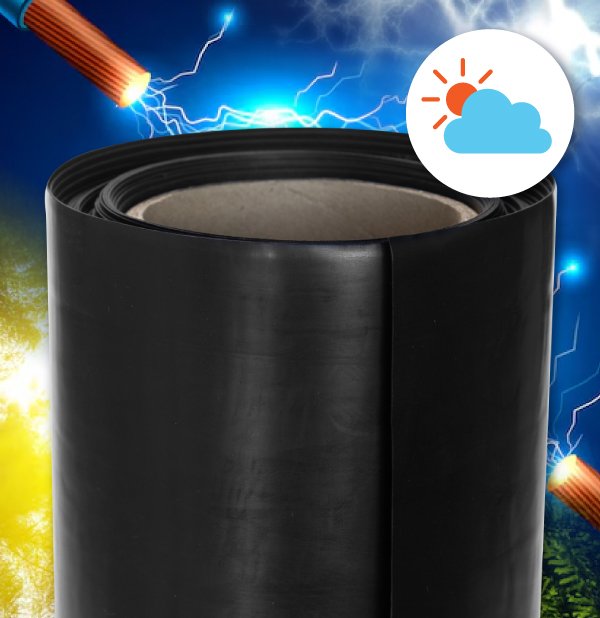

  Superior resistance to UV, ozone, and harsh weather conditions

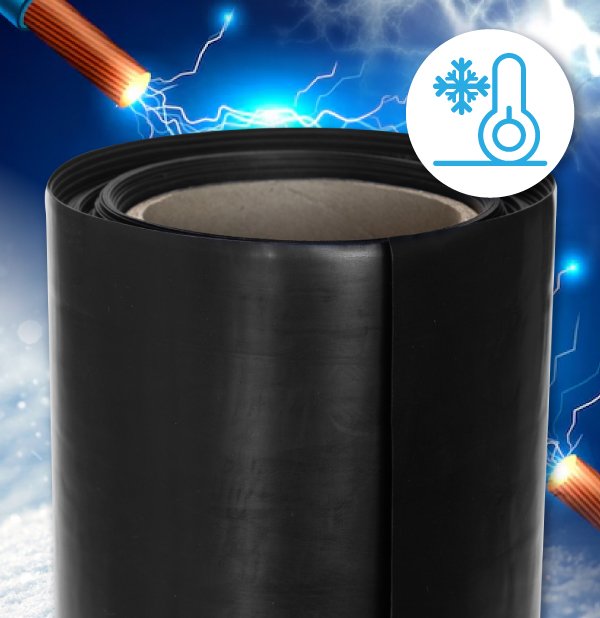

  Flexible and durable — does not crack or become brittle at low temperatures
  Lightweight and easy to install

Product Description

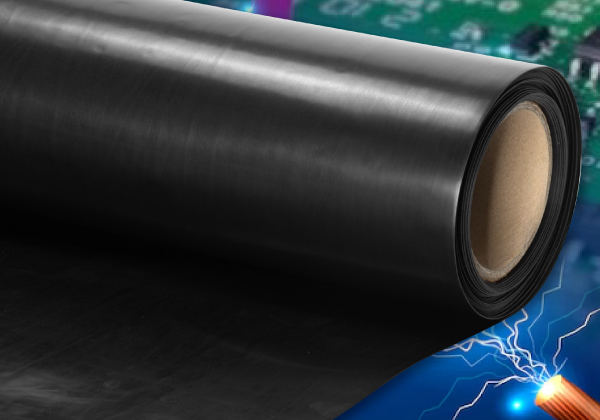

The ElectroMer® Conductive CR ( Neoprene) Rubber Sheet is specifically engineered for applications that require either low-amperage conductivity or effective protection against electrostatic discharge (ESD). It is ideally suited for industries where precision and electrical safety are critical, such as electronic manufacturing, medical equipment, electrical leak detection systems, and EMI (Electromagnetic Interference) shielding.

This conductive rubber sheet comes in a standard width of 1,000 mm (1 meter), with thickness options ranging from 0.5 mm to 25 mm and a standard roll length of 10 meters. Custom cutting services are also available to meet precise application requirements.

While many rubber compounds offer electrical resistance, they are not always designed to dissipate static electricity. The ElectroMer® sheet overcomes this limitation with a specialized CR rubber compound blended with conductive-grade carbon black, enabling true electrical conductivity and enhanced performance in static-sensitive environments.

In addition to its excellent conductivity and ESD protection, this Neoprene conductive rubber offers a wide range of performance benefits, including:



High heat resistance
Flexibility at low temperatures — will not crack or become brittle like PVC
Excellent resistance to UV, ozone, and outdoor weathering
Durable against oils and a variety of industrial chemicals

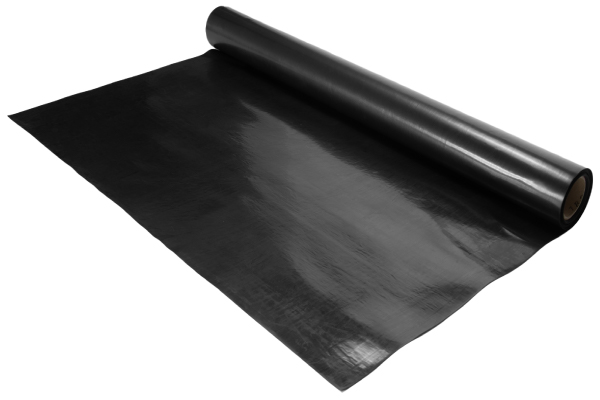

Technical Specifications

 Property Specification
 Product Name Electrically Conductive Rubber Sheet
 Brand ElectroMer®
 Electrical Resistivity ≤ 10(3) Ω.cm.
 Hardness 65 ± 5 Shore A
 Material CR (Chloroprene Rubber / Neoprene)
 Color Black
 Surface Finish Smooth on both sides
 Available Thickness 0.5 - 5 mm
 Width 1-1.5 meter
 Length/Roll 10 meters

Technical Data

 Property Value Unit Test Method
 Specific Gravity 1.34 ± 0.05  - ASTM D297
 Hardness 65 ± 5  Shore A ASTM D2240
 Tensile Strength >12 Kgf/cm² ASTM D412
 Elongation at Break >300  % ASTM D412
 Modulus @ 100% Elongation 1.88 Kgf/cm² ASTM D412
 Modulus @ 300% Elongation 7.80 Kgf/cm² ASTM D412
 Continuous Service Temperature -30 to 100 °C -

Applications
Rubber Sheet is suitable for a wide range of static-sensitive and electrically demanding environments, including :

  Electrical leak detection systems, such as testing for pinholes in condoms and other high-integrity sealing products
  EMI/RFI shielding for electronic enclosures, control boxes, and connectors
  Medical, military, aerospace, and telecommunications equipment requiring anti-static protection
  Enclosure covers, access doors, and control panel joints where conductivity and sealing are critical
  Flange gaskets for pipes, tanks, and fluid transfer systems
  Flexible connection sleeves and transfer boots for conductive material transfer
  Isolation barriers to prevent contact between electrically sensitive or incompatible components

STANDARD SIZE

Thickness (mm)Width (mm)Length/Roll (M)
0.5100010
1 100010
1.5 100010
2 100010
3 100010
4 100010
5 100010

  Note

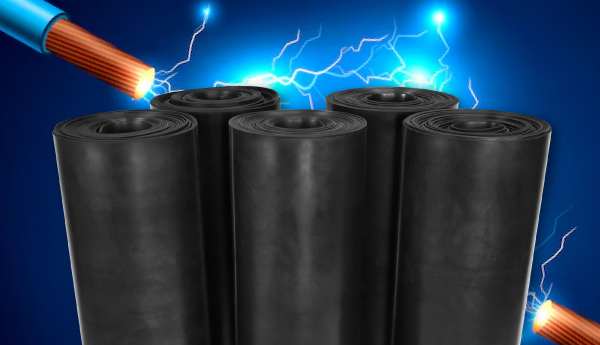

  Minimum order quantity : 10 rolls
  Custom manufacturing available to meet specific thickness, material properties, or project requirements
  Custom cutting service provided based on your drawing or specified dimensions


  Contact Us
For more information, quotation requests, or custom production :
Line Official : @ptirubber
Email : info@ptigroups.com
Tel : 02-257-7154
Mobile/WhatsApp : 086-307-7319

ElectroMer® is a registered trademark of Polytech Industry Company Limited. All rights reserved.
