ESD RUBBER MAT - polytechindustry

ElectroMer^® ESD Rubber Matting (RoHS-2 Compliant)
Advanced static protection
for the equipment that matters most

ElectroMer^® ESD Rubber Matting (RoHS-2 Compliant)

Trusted static protection, reimagined for modern workspaces.
Now available in 5 refined shades — for environments that demand safety, and style.

Safer for People. Better for the Planet.

RoHS-2 Compliant. Certified non-toxic, environmentally friendly.
A choice that speaks to your brand’s commitment to sustainability.

Engineered for Precision. Built to Last.

Enhanced Dissipative Layer for faster, more stable static discharge.
Consistent performance. Extended durability.

Performance You Can Feel. Durability You Can Trust.

Made from high-quality NBR rubber Flexible, oil-resistant, chemical-resistant, abrasion-resistant,
heat-resistant and even withstands hot soldering without melting.

Ready When You Are.

Available now in 3 thickness options : 2 mm | 3 mm | 5 mm

Get Closer. See Every Detail.

Dual-layer structure.

Engineered to work in harmony.

Glossy. Sleek. Stronger than it looks.

Easy to clean. Exceptionally scratch-resistant.
For workspaces that demand both performance and polish.

Standard width: 1.2 meters fewer seams, perfect coverage

Length per roll : 10 meters
Ideal for continuous applications with minimal joints.

ESD Rubber Mat – Designed for True Static Protection
This ESD (Electrostatic Discharge) rubber mat is engineered to provide reliable protection in environments where electrostatic safety is critical.
Certified RoHS-2 compliant, it ensures safety for both human health and the environment.

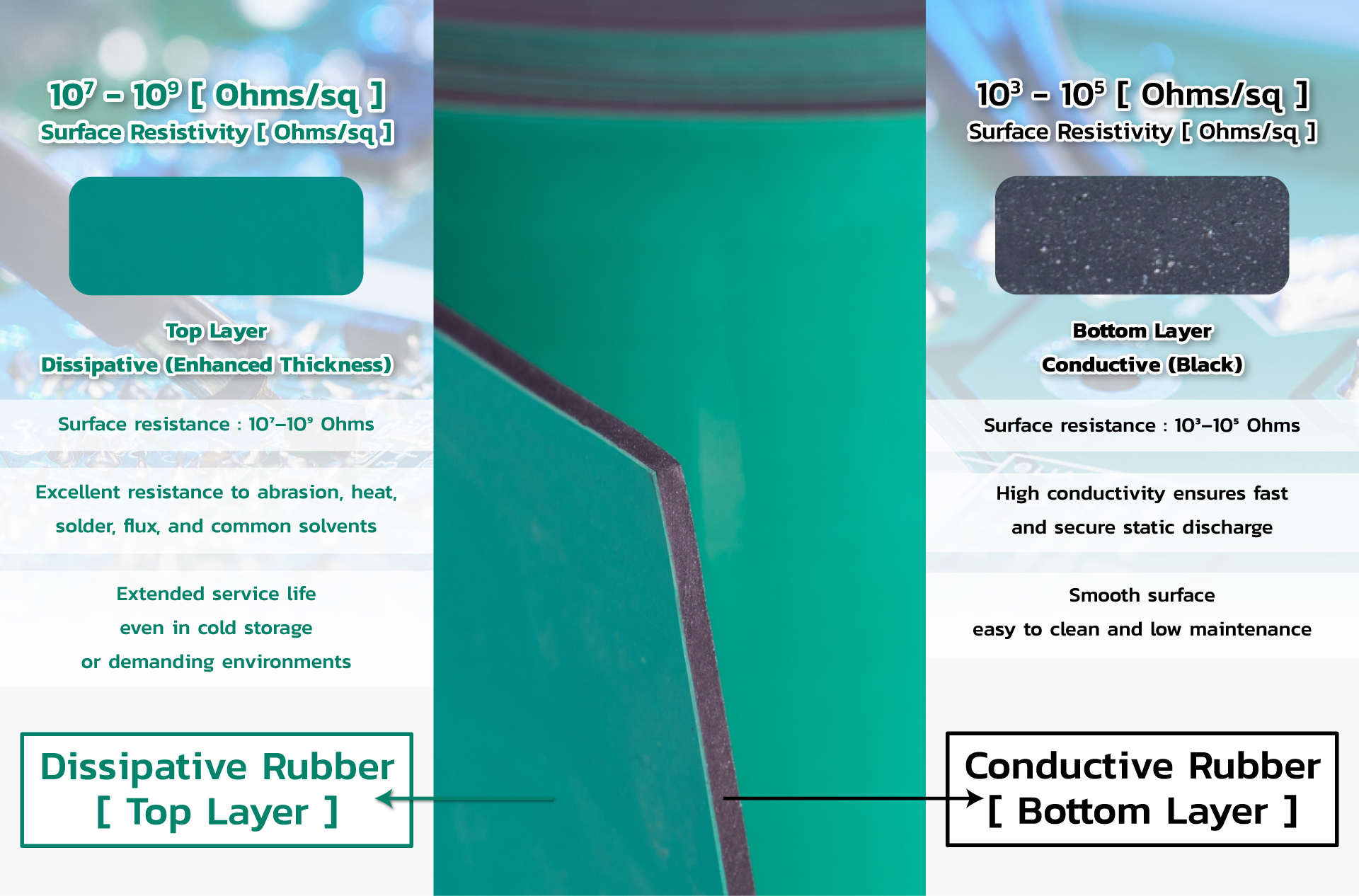

Dual-layer construction. Two functions working in harmony.

Top Layer – Dissipative (Enhanced Thickness) :

Surface resistance : 10⁷–10⁹ Ohms
Excellent resistance to abrasion, heat, solder, flux, and common solvents
Extended service life — even in cold storage or demanding environments

Bottom Layer – Conductive (Black) :

Provides a stable and efficient path to ground

Surface resistance : 10³–10⁵ Ohms
High conductivity ensures fast and secure static discharge
Smooth surface — easy to clean and low maintenance

Specifications

Properties	Values
	Top Layer (Dissipative Layer)	Bottom Layer (Conductive Layer)
Electrical Resistance	10⁷ - 10⁹ ohms	10³ - 10⁵ ohms
Color	Persian Green / Apple Green / Blue / Grey / Black	Black
Time of Static Dissipation	< 0.5 S
Total Thickness	2 mm / 3 mm / 5 mm
Width	0.6 M / 0.9 M / 1 M / 1.2 M
Length / Roll	1-10 M
Hardness	65+/-5 Shore A
Working Temp.	-40 to +100^๐C
Surface Treatment	Dull / Glossy
Product Certification	RoHS-2

Standard Size

Applications

Assembly lines

Cleanrooms

Warehouses

Construction site

Walkways

Cart traffic

Anywhere flammable materials

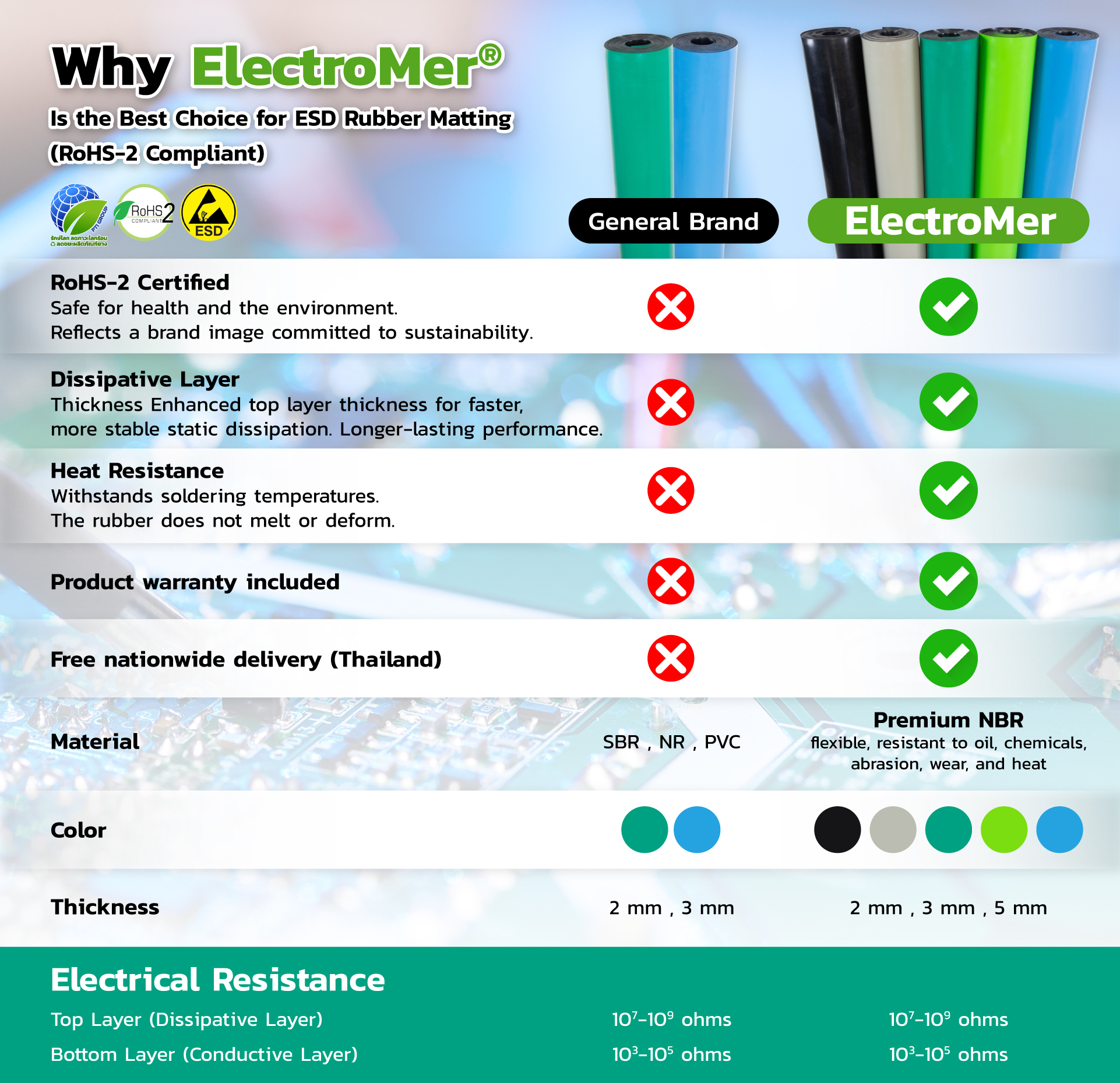

Why ElectroMer^® Is the Best Choice for ESD Rubber Matting (RoHS-2 Compliant)

ElectroMer^® – The ESD Rubber Mat You Can Trust
Because static electricity should never have the chance to damage your critical equipment or disrupt your production line.
Available from just 1 roll (12 square meters)
