PATTERNED Electrical Insulating

PATTERNED Electrical Insulating Rubber Mats - IEC 61111:2009

Key Features

Tested and certified to IEC 61111:2009 standards
Provides electrical insulation for voltages ranging from 1,000V to 36,000V
Complies with electrical safety regulations
Clearly labeled with standard safety markings for easy identification
Safe for low-voltage switchboard areas and high-voltage electrical equipment
Textured anti-slip surface for enhanced safety; fabric-textured backing for superior grip and easy installation
Highly durable – resistant to wear, chemicals, and moisture
Low maintenance and easy to clean

Product Description

The ElectroMer PATTERNED Electrical Insulating Rubber Mats have been rigorously tested and comply with IEC (International Electrotechnical Commission) standards, a globally recognized benchmark for electrical insulation safety. These mats provide reliable protection against electrical voltages ranging from 1,000V to 36,000V. Each roll comes with a clearly labeled product specification tag with a color-coded system, allowing users to easily verify the protection level and ensure proper usage.

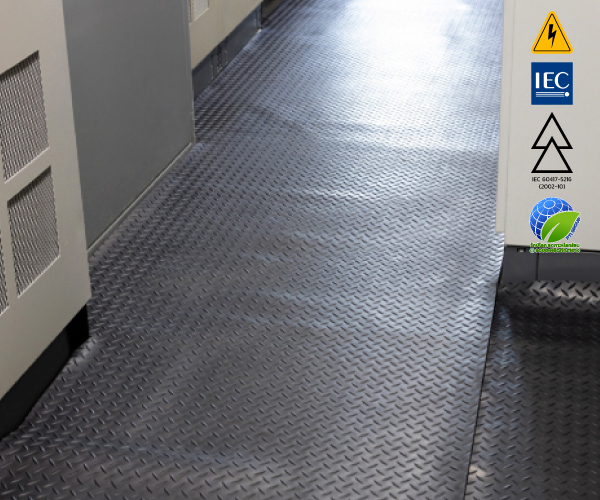

Manufactured with a specialized rubber compound, the ElectroMer PATTERNED Electrical Insulating Rubber Mats offer high dielectric strength, effectively preventing electrical current leakage. The top surface features various anti-slip patterns, including coin, diamond, checker, and fine-ribbed textures, enhancing slip resistance while also adding an aesthetic appeal. Additionally, the textured fabric impression on the bottom surface improves adhesion to installed surfaces, ensuring stability. These mats are highly durable, resistant to wear and tear from foot traffic and equipment movement, while maintaining excellent moisture, chemical, and slip resistance.

Designed for high flexibility, the ElectroMer PATTERNED Electrical Insulating Rubber Mats are easy to install, can be conveniently rolled up for storage and transportation, and can be precisely cut to fit various spaces using standard cutting tools. This adaptability ensures they meet a wide range of application needs across different industries.

At ElectroMer, we manufacture and supply the PATTERNED Electrical Insulating Rubber Mats to provide both high-voltage protection and superior anti-slip performance, ensuring that you receive the most reliable, durable, and safest electrical insulating mats tailored to your specific requirements.

IEC 61111:2009 CLASS RANGE

Level	Class (IEC61111:2009)	Stock Thickness	Length/Roll	Max. Use Voltage	Withstand Voltage	Colour Code
1	0	3 mm	10M	1000 Volts	10000 Volts	Red
2	1	3 mm	10M	7500 Volts	20000 Volts	White
3	2	5 mm	10M	17000 Volts	30000 Volts	Yellow
4	3	8 mm	10M	26500 Volts	40000 Volts	Green
5	4	10 mm	10M	36000 Volts	50000 Volts	Orange

SPECIFICATIONS

Product Name	Patterned Electrical Insulating Rubber Mats
Brand	ElectroMer
Model	PATTERNED
Class (IEC61111:2009)	Class 0 / Class 1 / Class 2 / Class 3 / Class 4
Max Use Voltage	1,000 Volts - 36,000 Volts
Thickness	3 mm, 5 mm, 8 mm, 10 mm
Width	1 Meter
Length/Roll	10 Meters
Top Surface	Coin / Diamond / Checkered / Fine-Ribbed
Bottom Surface	Texture
Color	Black (All patterned available), Gray , Persian Green (Coin patterned only)
Test Certification	Yes
Lifespan	3-5 Years
Warranty	12 months

POTENTIAL APPLICATIONS

Electrical Substations	MDB / Switchgear Rooms	Battery Rooms	Ship Electrification Systems
Power Plants	Industrial Workshop	Transformer Stations	Assembly lines
Generator Rooms	Control Panels	Electrical Laboratories	Construction sites
High Voltage Rooms	Data Centers	Railway Electrification Systems	Commercial buildings, and many more.

Physical & Voltage Specification

Product Code	Class (IEC61111:2009)	Stock Thickness	Roll Size	Weight/Roll	Max. Use Voltage	Withstand Voltage	Colour Code
EM-EI-XX-CC-3X1	0	3 mm	1MX10M	40.5 kg	1000 Volts	10000 Volts	Red
EM-EI-XX-CC-3X1	1	3 mm	1MX10M	40.5 kg	7500 Volts	20000 Volts	White
EM-EI-XX-CC-5X1	2	5 mm	1MX10M	67.5 kg	17000 Volts	30000 Volts	Yellow
EM-EI-XX-CC-8X1	3	8 mm	1MX10M	108 kg	26500 Volts	40000 Volts	Green
EM-EI-XX-CC-10X1	4	10 mm	1MX10M	135 kg	36000 Volts	50000 Volts	Orange

Please note:

Class 3 & Class 4 IEC Electrical Insulation Matting not held in stock.
XX (Patterned) : Coin(CO), Diamond(DI), Checker(CK), Fine Rib(FR)

CC (Color)

Black (BK) (All patterned available)
Light Gray (LG) , Persian Green (PG) : Coin Patterned Only

Customize your UL Electrical Insulating Rubber Mats

Customization	Option
Thickness	Customizable Thickness : Available in various classes, with options up to 14 mm, precisely tailored to meet your specific requirements.
Width	Max Width up to 1500 mm
Length	Max Length up to 15 m
Color	Grey ,Dark Grey, Apple Green, Persian Green, Red, and Orange, with the option to customize further based on technical and commercial feasibility.

TECHNICAL DATA

PROPERTIES	VALUES
Material	Electrical Insulating Rubber
Hardness	65+/-5 Shore A
Specific Gravity	1.30-1.35
Tensile Strength	>70Kg/CM²
Elongation at Break	>250%
Temperature Range	-30°C to +60°C
Abrasion & Tear Resistance	Excellent
Anti-Slip Resistance	Excellent

Why Choose ElectroMer Electrical Insulating Rubber Mat - PATTERNED Model ?

Largest Inventory in Thailand
Ready for Immediate Delivery – Minimize waiting time and start installation and usage without delays.

Expert Consultation Services
Specialized Sales Engineers – Get professional guidance on selecting and installing electrical insulating rubber mats safely and efficiently.

Tested & Certified to IEC 61111 Standards
Guaranteed Quality & Safety – Compliant with international safety standards for maximum reliability.

Comprehensive & Transparent Certification
100% Assurance – Includes Certification, COA (Certificate of Analysis), Test Report, and User Manual for maximum safety and peace of mind.

12-Month Quality Guarantee
Proven Durability & Performance – Backed by a 1-year product quality warranty.

Complete Installation Service
Professional Installation Team – Comes with a 1-year installation warranty, ensuring worry-free usage.

Customized Production to Fit Your Needs
Tailored Design & Manufacturing – Modified and designed to match your specific applications with optimal safety.

Custom Cutting Service
Pre-Cut Electrical Insulating Rubber Mats – Ready for immediate installation, saving both time and costs.

Choose ElectroMer Electrical Insulating Rubber Mats Today!
Experience superior safety, quality, and comprehensive service that meets international standards

How to Order ElectroMer PATTERNED Electrical Insulating Rubber Mats - IEC 61111:20091:2009
To ensure a smooth purchasing process for ElectroMer PATTERNED Electrical Insulating Rubber Mats, please follow these steps:

Step 1: Review Product Details
   Voltage Range: 1,000V - 36,000V
   Thickness Options: 3 mm, 5 mm, 8 mm, 10 mm (Customizable up to 14 mm)
   Width: 1 meter (Maximum width available: 1.5 meters)
   Length: 10 meters per roll (Customizable up to 15 meters)
   Top Surface Options: Coin, Diamond, Checker, Fine-Ribbed
   Bottom Surface: Textured Fabric
   Color Option : Black (Available for all patterns), Gray, Persian Green (Coin pattern only)
   Certification: IEC 61111:2009 tested and certified
   Warranty: 12 months

Step 2: Check Minimum Order Quantity (MOQ)
Minimum Order: 1 roll per selected size and specification

Step 3: Request a Quote
   Price per Roll (THB): Contact us for an exact quote
   To request a quote, please provide the following details
   Voltage range and Class of rubber mat (Class 0, 1, 2, 3, 4)
   Quantity of rolls and required thickness
   Delivery address

Step 4: Confirm Your Order
To proceed with your order, please provide:
   Product Code (e.g., EM-EI-CO-BK-3X1 for Coin pattern, Black color, 3 mm thickness, Class 0)
   Quantity and any additional details (if applicable)
   Shipping Method: Private courier service
   Packaging Requirements (if any)

Step 5: Shipping & Logistics
   Delivery Time: 3 - 5 working days after order confirmation (Free nationwide shipping within Thailand)
   Packaging: Plastic-wrapped and packed in roll sacks for safe transportation
   Delivery Tracking: Contact us for tracking details and estimated delivery time

Step 6: Payment & Tax Invoice
Payment Method: Full payment in advance (Bank Transfer)
Tax Invoice: E-tax invoice available under the company’s name upon request
